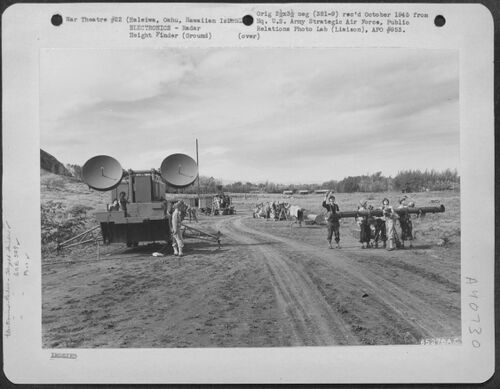

Radar ("Mickey Mouse" from twin-dish antennas) project cancled Mobile microwave radar-optical height finder. (Slant range supplied by radar; azimuth and angular height by optical tracking.) Set consists of antenna trailer, tractor, and spare parts truck. Early models also include a power van. USES: To supply slant range or altitude to Antiaircraft Artillery fire control instruments.
Components
- on K-67 trailer
- BC-941, range unit
- BC-947, transmitter
- BC-957, Receiver-Indicator, 5HP3 CRT
- MC-363 range converter,
- RA-58 power unit),
- K-60 truck parts ?
References
- FM 4-143 Antiaircraft Artillery Field Manual Service of Height Finder SCR-547
- TM 11-1109, 1943
