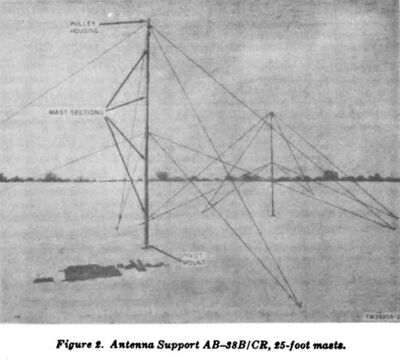

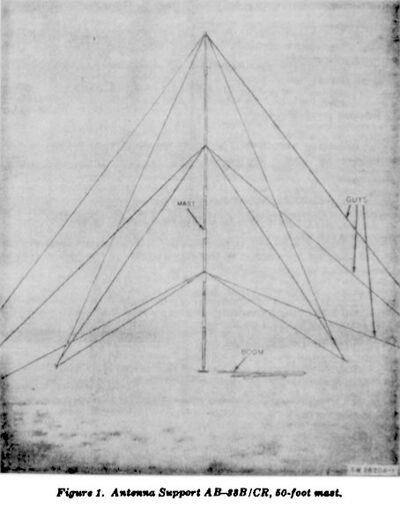

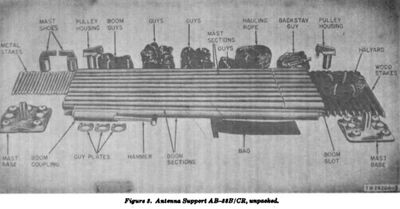

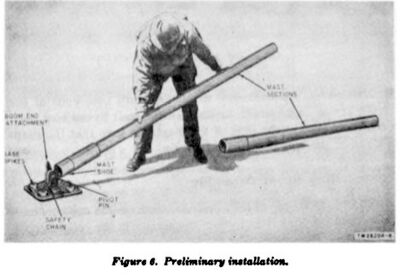

Antenna Support AB-38B/CR is an eight-section assembly that can be set up as a single 50-foot mast or as two 25 foot masts ( Each mast is pivot-supported at the base and is adjusted and guyed in a fixed vertical position. At least two men are required to erect the equipment. Antenna Support AB-38B/CR is used to mount coaxial or half-rhombic antennas in the field. AB-38B.CR.1.jpg AB-38B.CR.2.jpg AB-38B.CR.3.jpg AB-38B.CR.4.jpg

Reference

Adobe PDF icon.png TM 11-2620A 1952 (AB-38B/CR)
