SCR-584

SCR-584 mobile search radar

(S-Band, later X-Band) Mobile medium-range microwave Antiaircraft Artillery gun-laying set, consisting of semi-trailer and 4-ton tractor. One spare parts truck is furnished to each AA gun battery. Supplies present azimuth, angular height and slant range or altitude. Operates with IFF equipment RC-184. USES: To search for targets and furnish position data for AAAIS. Transmits necessary present position data for all long-range AA gun directors. May also be used as radar range or height finder with separate visual determination of azimuth and angular height.

Components

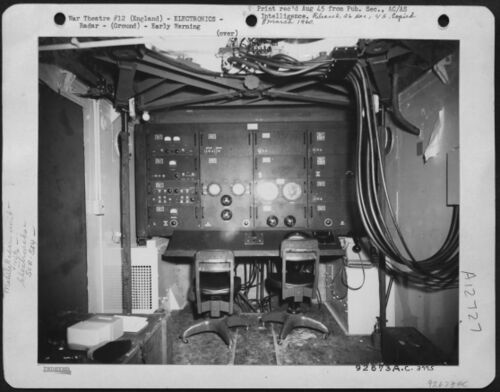

• housed in K-78 trailer
• BC-964 ?
• BC-984 Modulator 16 584 and 9 784 tubes
• BC-1056 Radar Rcvr 30 MC IF 14 tubes, U/W AN-101-A Antenna, MC-581,607 S to X-Band Conv. Kit
• BC-1058 PPI Driver 5-6L6, 13 6SN7 tubes
• BC-1062 Range Computer 14 tubes U/W BC-BC-1047
• BC-1071 Servo Amp, 31 tubes
• BC-1074* PS and Video Amplifier 30 MC IF, 4 tubes RA-71
• BC-1075* Altitude Data Unit for M4 and M7 Gun Directors U/W BC-1094, RA-70
• BC-1076* Antenna Position Indicator
• BC-1078 30 MC IF Pre-amplifier two 6AC7
• BC-1080 Radar Xmtr Driver 8 tubes U/W BC-1373
• BC-1085 Manual Antenna Position Control U/W MC-643,644
• BC-1086 Automatic Tracking Unit 5 tubes
• BC-1088 Range Ind. two 3DP1 U/W BC-1399, MC-578,581
• BC-1090 Azimuth-Elevation Tracker 16 tubes
• BC-1092 PPI Display, 7BP7 U/W BC-1370
• BC-1094 Altitude Computer 15 tubes
• BC-1096 Oscillator, 2680-3300 MC 7 tubes
• BC-1130 Crystal IF Mixer, U/W TR Box
• BC-1131 Modulator
• BC-1132 T-R Box 721A tube
• BC-1133 Xmitter
• BC-1838 ?
• AN-101 dish
• CD-1259
• CD-1324
• MP-61
• PN-22
• PN-24
• PN-52
• PN-53
• R-71
• RA-62
• RA-66
• RA-68
• RA-69,
• RA-70
• RA-71
• RA-72
• RC-184 IFF

X-Band Modfication

• Kits: MC-581,607*,624,627,645,662,663,672, CD-1324,1393, CD-1354,1355,1356,1357,1360-1367,1371,1372,1391,1415,1424-1427,MC-607
• X-Band Modification Kit, MG-16A,19A, PN-53, RA-141,142 U/W RC-148,184,584 IFF Sets and RC-295,305,306 Plotting Eqpt.

References

• FM 4-44,
• TM 11-1324, Radio Set SCR-584 Technical Manual General Description, Operating Instructions and Equipment Performance Log. War Dept. Dec. 1943
• TM 11-1363 General,
• TM 11-1424 Maintenance,
• TM 11-1524 Theory-Servicing

See Also

RD-54/TP

RO-3/MPQ
